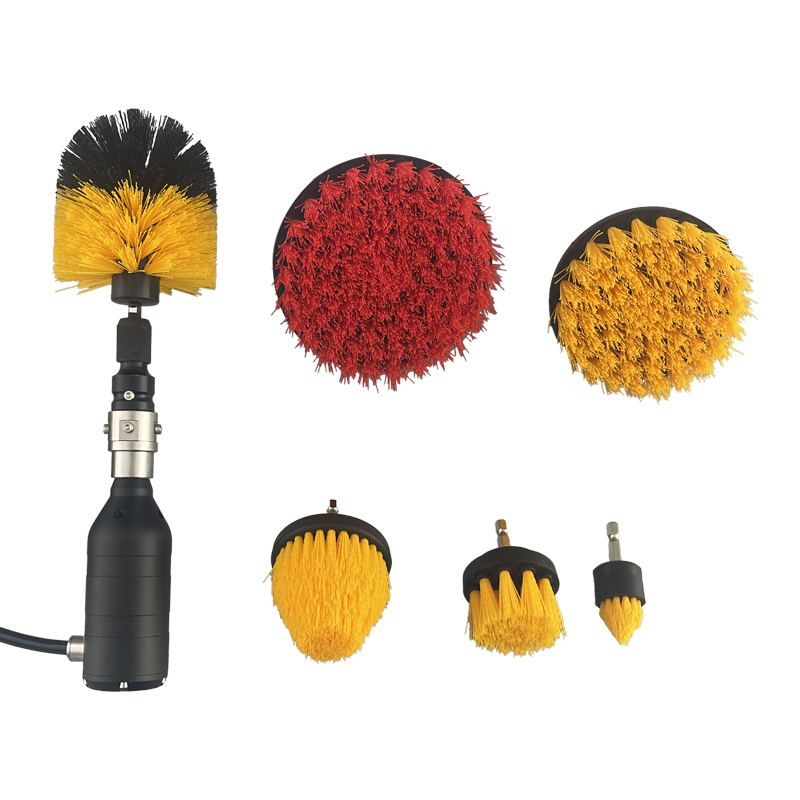

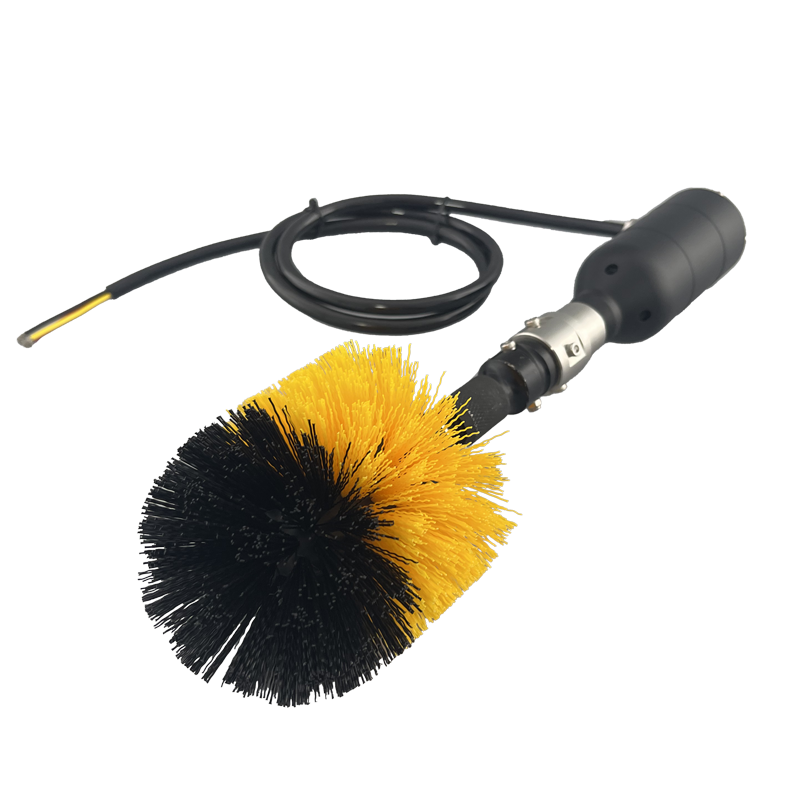

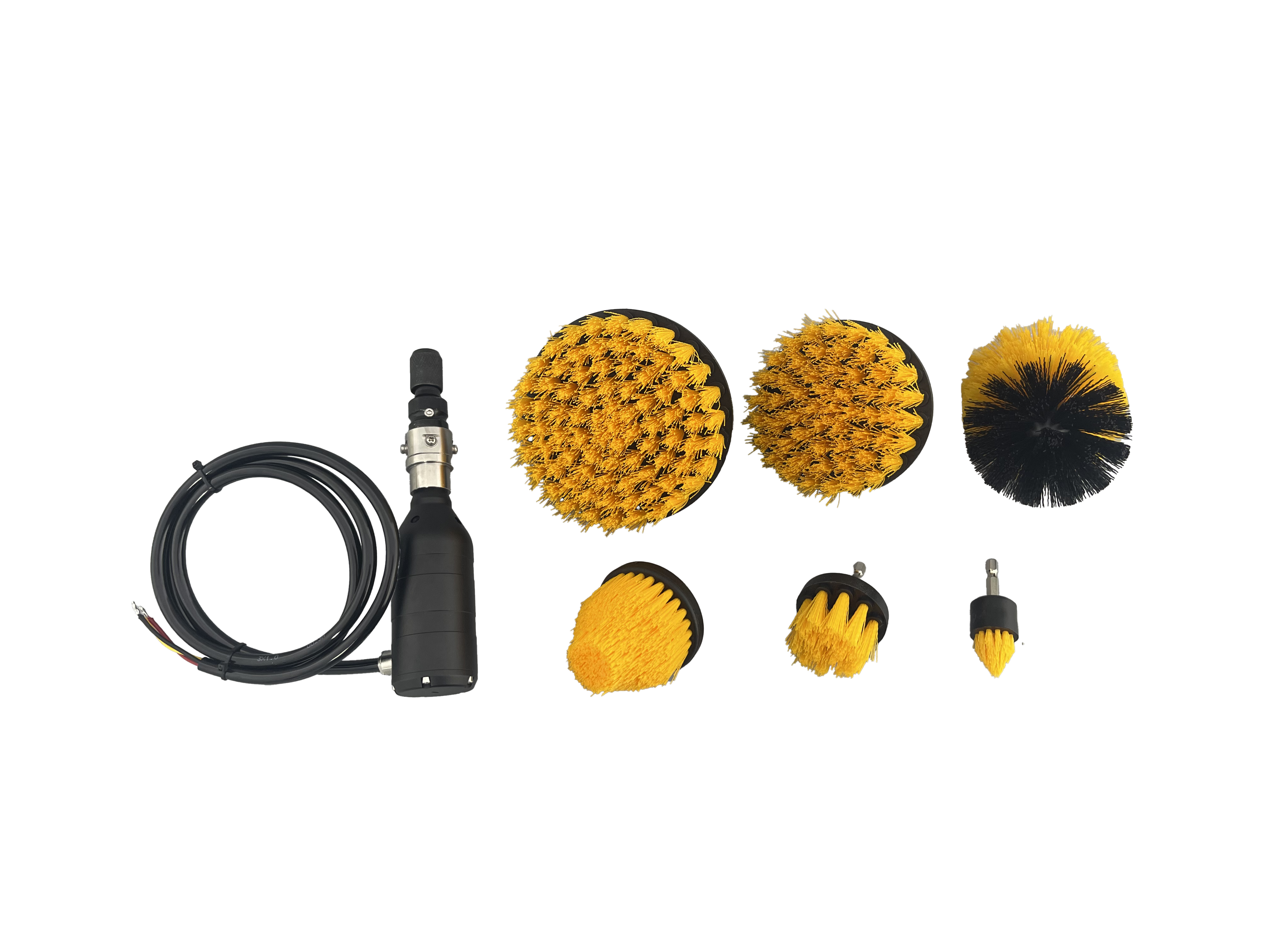

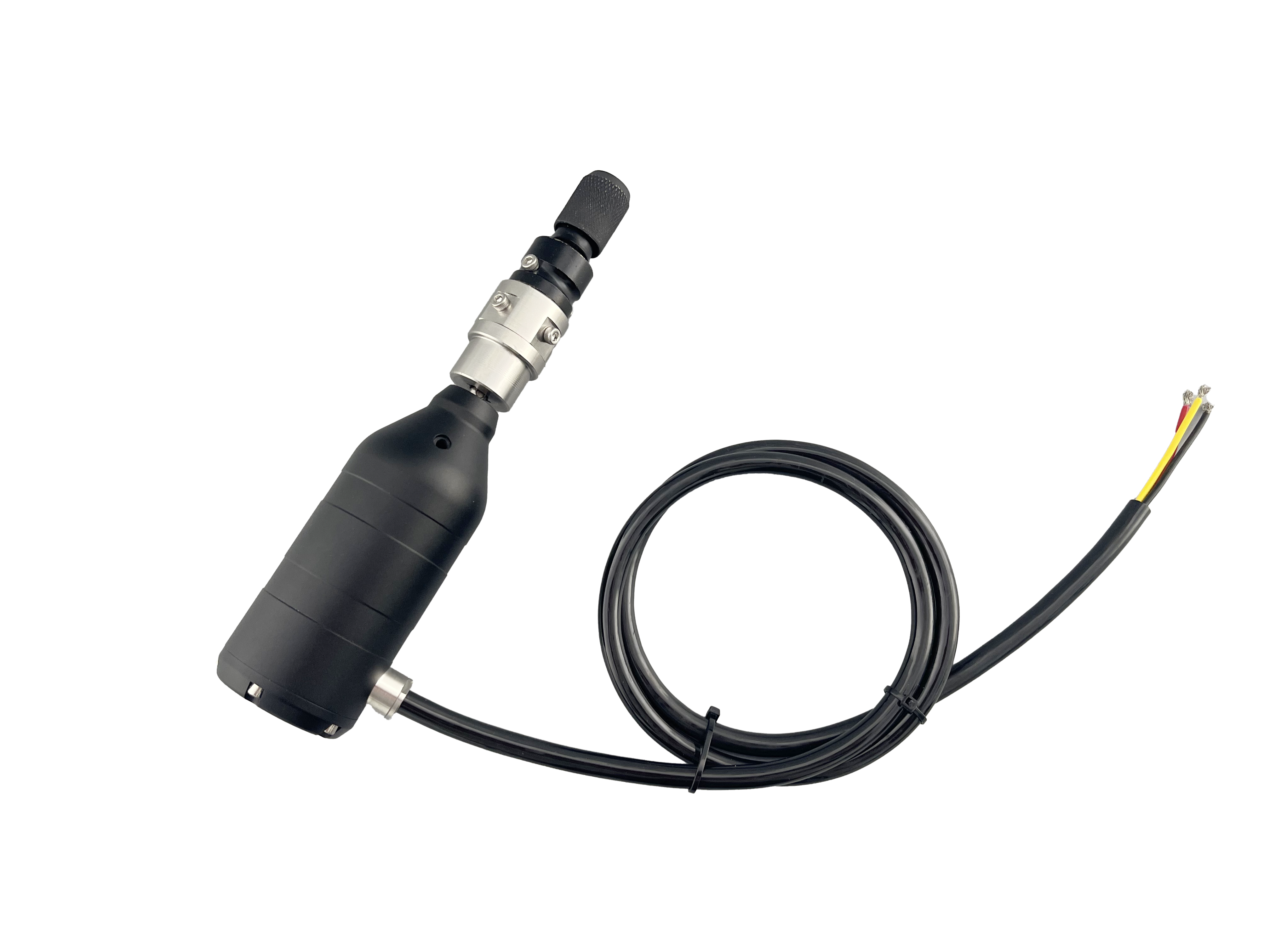

FD-ECB-01 Underwater Electric Cleaning Brush

FD-ECB-01 Underwater Electric Cleaning Brush

1、Product Specifications

Moto type

Exterior rotor brushless motor

Rated depth

300m

Sealing method

Maintainablee full-sealing

Sealing Structure

Adaptive rotary dynamic seal structure

Oil pressure compensation

With

Shell material

Aluminum alloy

Main shaft diameter

6mm

Main shaft material

316L stainless steel

Cable iacket material

TPU

Cable specification

External diameter:7.5mm;length:1m ;inner core:3x1.0mm²

Maximum power

150 W

Maximum Speed

3400RPM

Rated voltage

24VDC

Driver

External ESC

Weight

in air：900g；in water：720g（including the brush）

Temperature

-10~40℃
