FD-HT80 Underwater Thruster

1、Product Specifications

Index

Parameter

Sealing Method

Maintainable full-sealing

Sealing Structure

Adaptive Rotary Dynamic Seal Structure

Oil Pressure Compensation

with

Thruster shell material

Aluminum alloy

Shroud material

POM

Mounting Base Material

Aluminum Alloy

Main shaft diameter

6mm

Main shaft material

316L stainless steel (hardened to 56HRC at the dynamic seal area)

Cable iacket material

TPU

Blade material

PC / Nylon / Aluminum Alloy

Blade diameter

80mm

Cable specification

external diameter:7.5mm;length:1m ;inner core:3x1.0mm²

Rated thrust

8kgf（forward） 5.8kgf（reverse）

Rated power

362.5W

Rated voltage

24v

Rated depth

300m

Weight

in air： 720g，in water： 430g

Driver

external

Temperature

-10~40℃

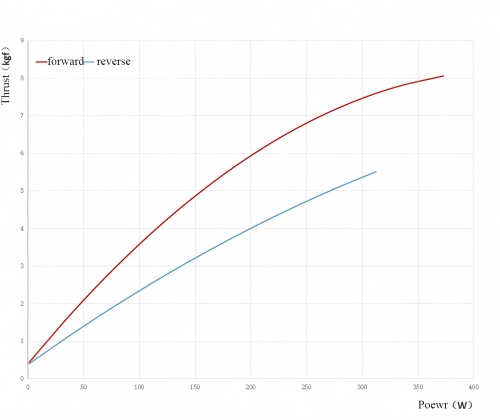

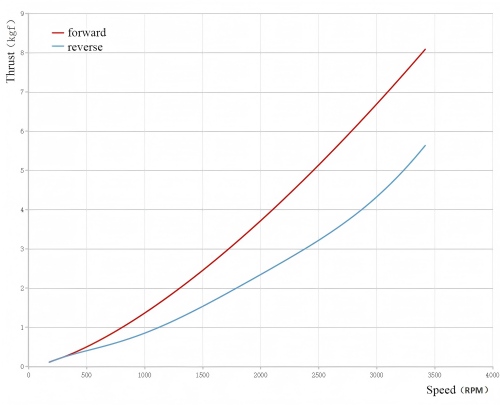

2、Thrust Curve

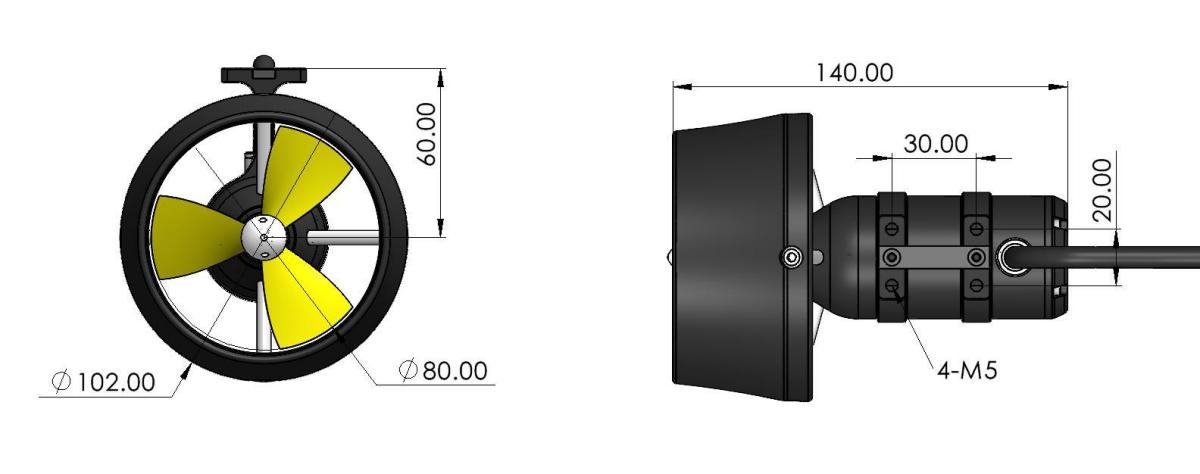

3、Overall Dimension
