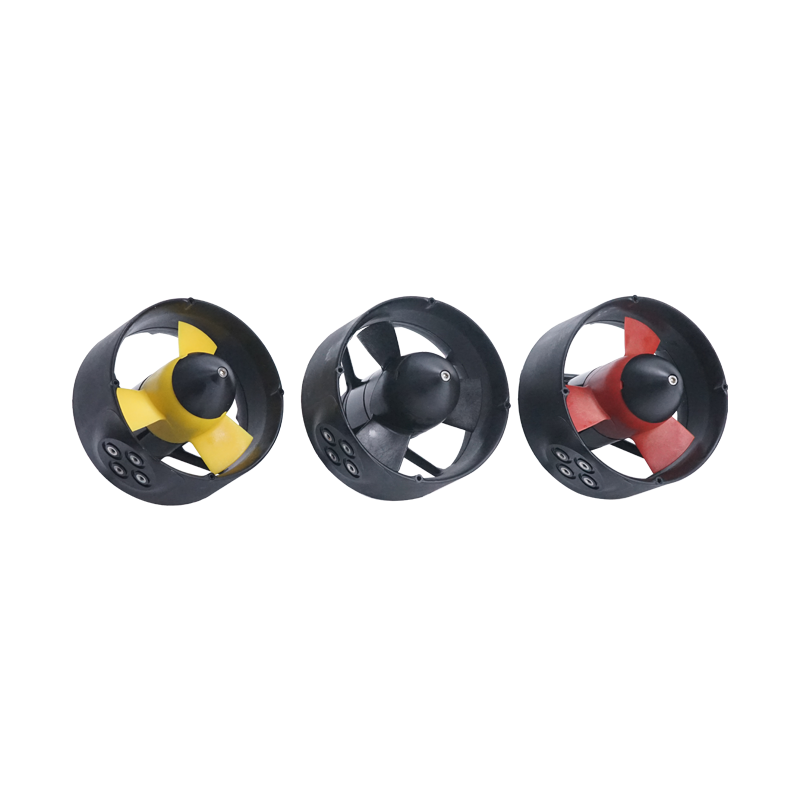

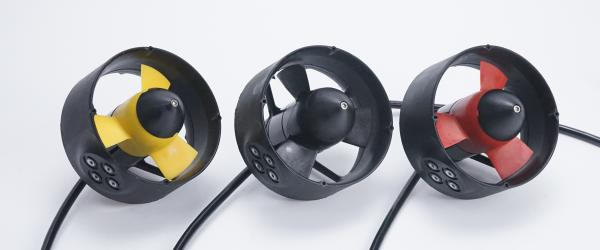

CHT200 Underwater Thruster

1、Product Specifications

Index

Parameter

Model

CHT200-（US/BE）-（PRO）

Naming convention

① "(US/BE)" is a blade with optional "unidirectional thrust enhancement" or "bidirectional thrust equalization" configuration
② "PRO" is a speed feedback function

Sealing Method

maintenance-free full-sealing

Sealing Structure

Double-compensated low-resistance rotary dynamic seal structure

Oil Pressure Compensation

with

Rated voltage

24VDC

Maximum thrust（Rated voltage）

CHT200-US-（PRO）：
6kgf（forward） 3.3kgf（reverse）；
CHT200-BE-（PRO）：
5.5kgf（forward） 4.7kgf（reverse）；

Maximum power（Rated voltage）

CHT200-US-（PRO）：400w
CHT200-BE-（PRO）：370w

Working voltage

11.1-25.2VDC

Moto type

exterior rotor brushless motor

Motor pole pairs

7

Main shaft diameter

6mm

Main shaft material

316L stainless steel

Blade diameter

81mm

Blade configuration

CW/CCW

Blade material

US：Aluminum alloy
BE：Carbon fiber nylon

Shroud material:

Fiberglass nylon

Thruster shell material

Aluminum alloy

Cable iacket material

TPU

Cable specification

CHT200-（US/BE）：external diameter：6mm ； length：1m
inner core：3×1.0mm²
CHT200-（US/BE）-PRO：external diameter：6mm ； length：1m
inner core：2×1.0mm²+2×0.5mm²

. Other parts material

316L stainless steel

Driver

external

Rated depth

300m

Weight without base

in air :470g ;in water 270g

Temperature

storage:0-40C working:0-35°C

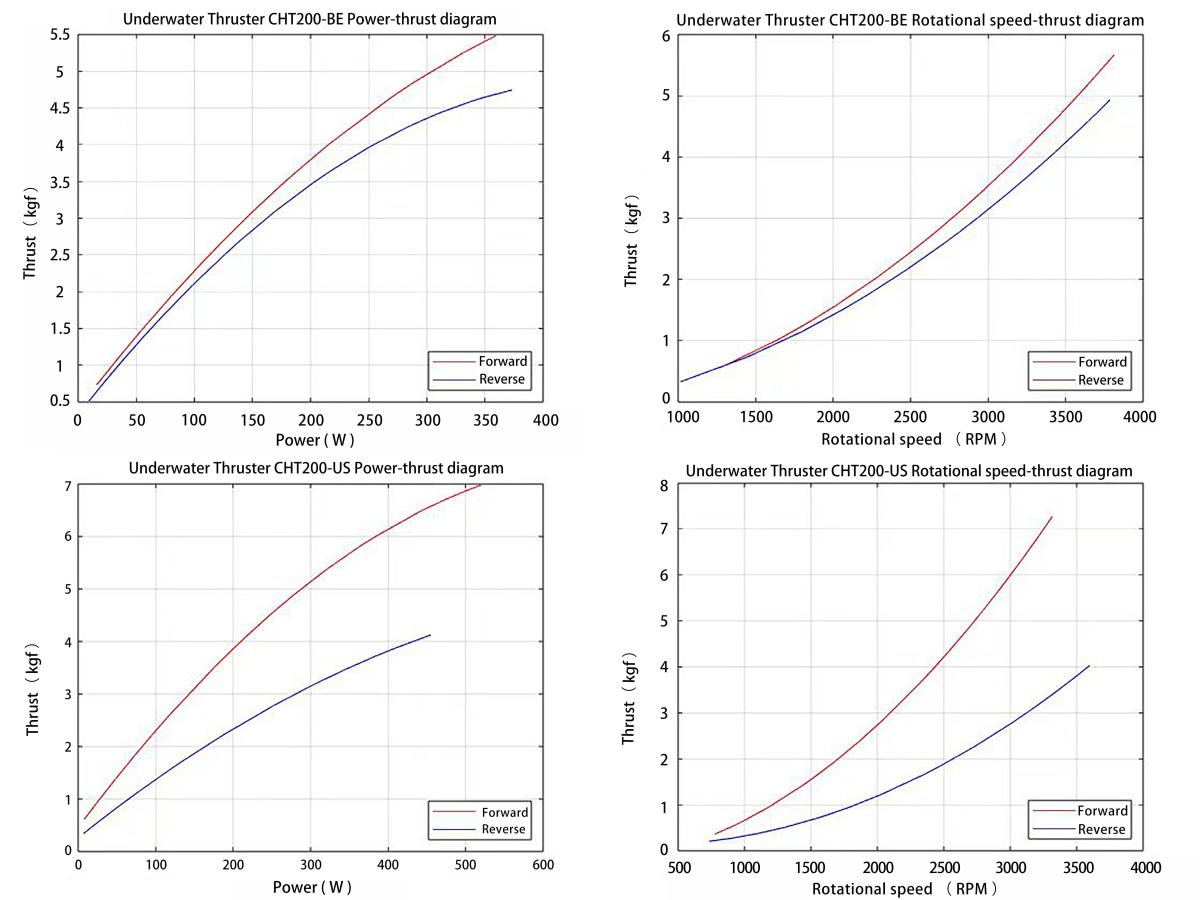

2、Thrust Curve
