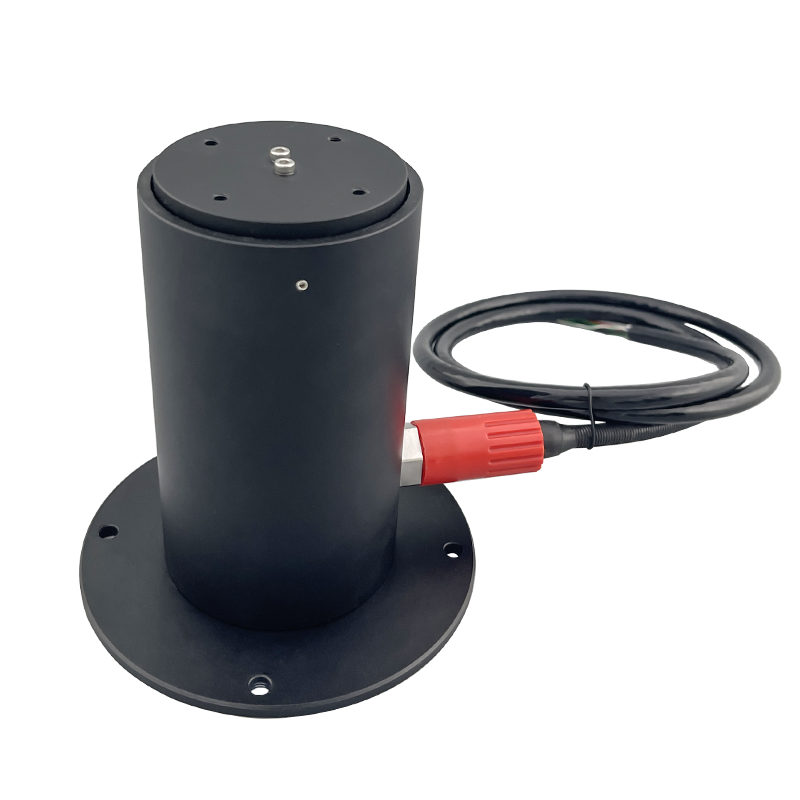

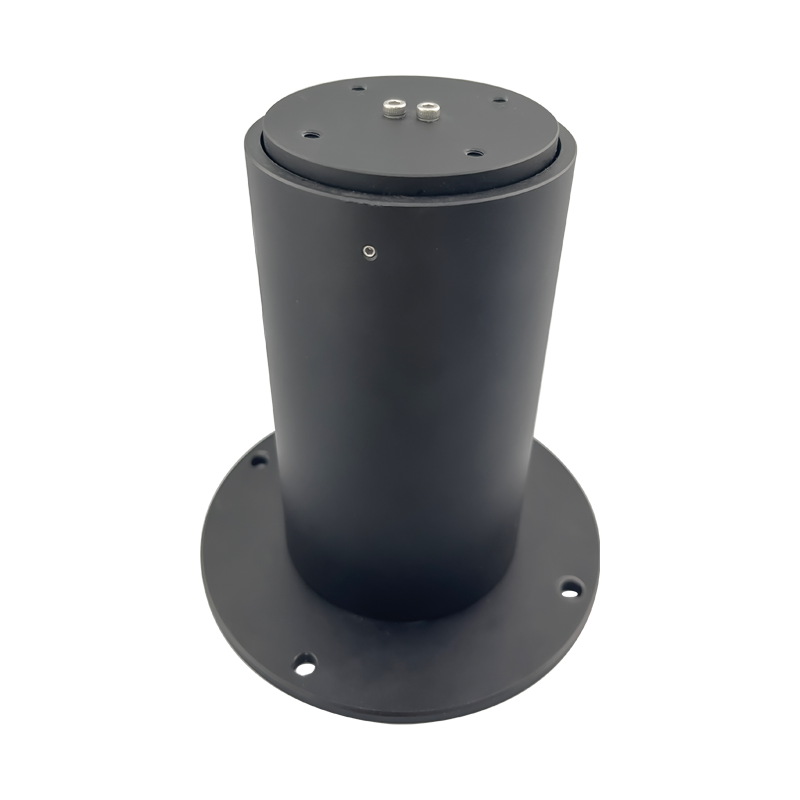

ROT-201 Underwater single-degree-of-freedom gimbal

1. Driven by a single motor
2. 0‑360° horizontal rotation with arbitrary position start‑stop
3. Modular waterproof sealing design, rated depth: 300 m
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

ROT-201 underwater single-degree-of-freedom gimbal

1. Product Features

--Driven by a single motor

--0‑360° horizontal rotation with arbitrary position start‑stop

--Modular waterproof sealing design, rated depth: 300 m

2、Product Specifications

Item

Parameter

Product Model

ROT201

Rotation Angle

0‑360° horizontal, arbitrary start‑stop

Material

Aluminum alloy with hard anodized surface

Quantity of Motors

1

Rated Torque (Single Motor)

1.65 N·m

Peak Torque (Single Motor)

3.3 N·m

Average Load Torque

2.3 N·m

Rated Rotational Speed

20 rpm

Peak Rotational Speed

36 rpm

Reduction Ratio

101:1

Reducer Type

Harmonic Reducer

Operating Voltage

24‑36 VDC

Communication Interface

CANopen or 485

Rated Power (Single Motor)

3 W

Encoder

Dual absolute encoder / 16 bit

Overall Dimension (L×W×H)

Ø76 × 140 mm (excluding base and connector)

Base Dimension

Ø130 × 5 mm

Waterproof Depth

300 m

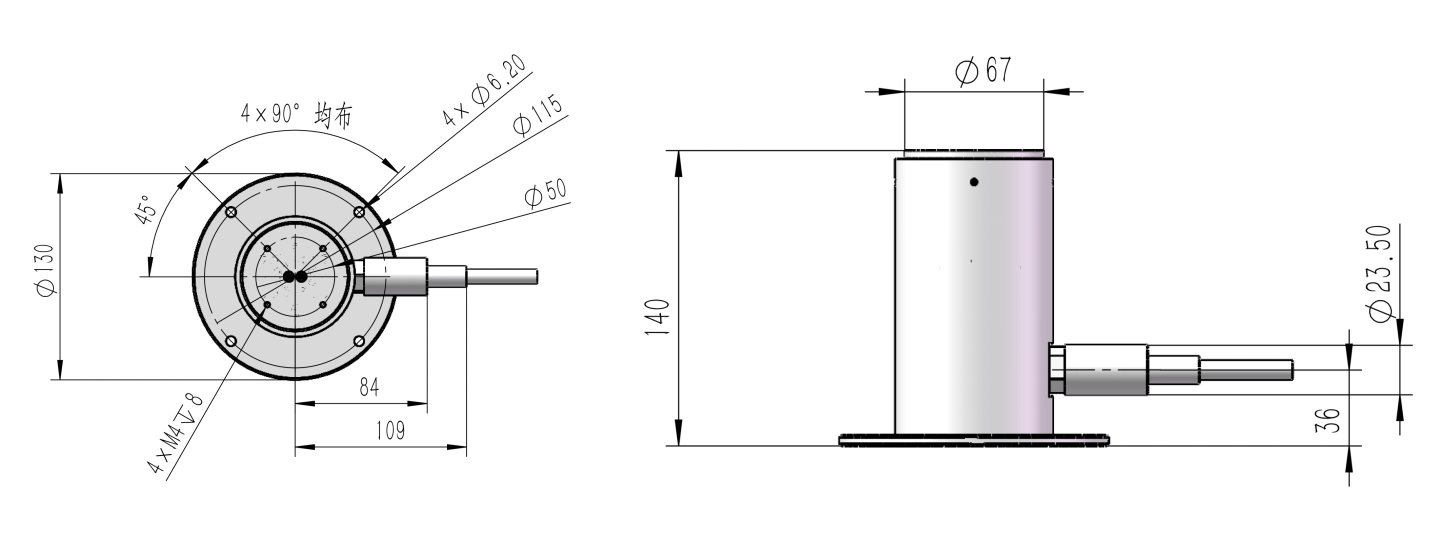

3、Overall Dimension


4、Pin‑out Definition


485接口：1-电源正，2-电源负，3-485A，4-485B

Can接口：1-电源正，2-电源负，3-CanH，4-CanL

5、Delivery List

download ROT-201-E.pdf

Random Products

M060 Underwater Thruster
M060 Underwater Thruster
FD-AC-02B21 Deep Water Zoom SDI Camera
FD-AC-02B21 Deep Water Zoom SDI Camera
FD-IPC-15L11 Underwater High Magnification IP Camera
FD-IPC-15L11 Underwater High Magnification IP Camera
FD-IPC-19P11 Deep-water ultra-low-light web camera
FD-IPC-19P11 Deep-water ultra-low-light web camera
FD-USB-01A10 Underwater USB Camera
FD-USB-01A10 Underwater USB Camera
FD-ROT103 Underwater Servo
FD-ROT103 Underwater Servo
FD-3D1000 Mechanical Scanning 3D Sonar
FD-3D1000 Mechanical Scanning 3D Sonar
FD-MS360 Dual-Beammechanical Scanning Sonar
FD-MS360 Dual-Beammechanical Scanning Sonar
2000 Lumen Diver's Light
2000 Lumen Diver's Light
FD-LL-063 Underwater LED Light
FD-LL-063 Underwater LED Light
FD-IPC-16M11 Underwater Small IP Camera
FD-IPC-16M11 Underwater Small IP Camera
Diver’s Camera
FD-DC-H401 Diver’s Camera
CHT200 Underwater Thruster
CHT200 Underwater Thruster
FD-H201 2-Function Manipulator
FD-H201 2-Function Manipulator
Bulkhead Connector Male Plug and In-Line Connector Female Socket Kit
Bulkhead Connector Male Plug and In-Line Connector Female Socket Kit
Wireless Hand Controller
Wireless Hand Controller
FD-POW-800-3500W-48-S01 Power Module
FD-POW-800-3500W-48-S02 Power Module
Doppler Velocity Log
Doppler Velocity Log
Subsea Buoyancy Foam
Subsea Buoyancy Foam

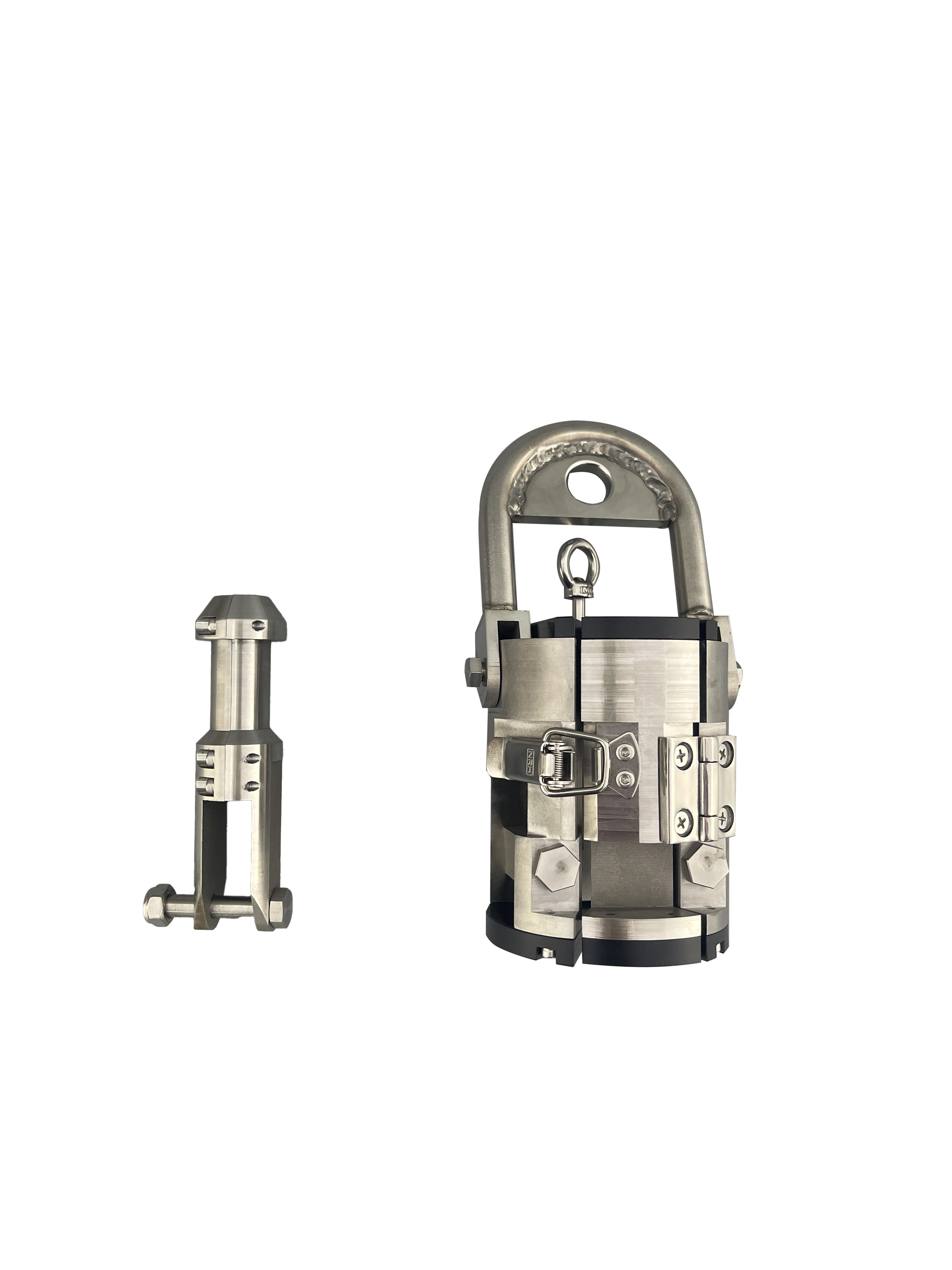

ROVLOCK ROV Release Device
