FD-IPC-10B11 Underwater Wiper IP Camera

1、Product Features

2M pixels，1080P HD
-Rated depth 200m
-IP camera,support standard ONVIF
-Built-in color restoration and underwater fog penetration algorithm
-Support character superposition through TTL serial port or RS485, the
size and position are adjustable.
-316L Stainless steel casing and POM material frame
-Two 50W high-power adjustable brightness fill lights
-The wiper frequency is adjustable.

2、Product Specifications

Product Model

FD-IPC-10B11

Rated Depth

200 meters（Deeply customizable）

Shell Material

316L stainless steel

Camera Resolution

1920*1080

Minimum Illumination

0.01Lux (color mode); 0.005Lux (black and white mode)

Focal Length

Optional: fixed focus / zoom (2.8~12mm, quadruple, normal zoom lens) / zoom (2.8~12mm, quadruple, mechanical lens, faster focus, more accurate step size)

Image Enhancement

Optional: no enhancement / automatic fog penetration / automatic fog penetration + green light suppression

Supporting Protocol

TCP/IP、UDP、RTP、RTSP、 RTCP、RTMP、HTTP、DNS、DDNS、DHCP、NTP、PPPOE、SMTP、UPNP

Interface Protocol

ONVIF

External Interface

Standard network interface

Fill Light Brightness

5000 lumens/unit, brightness adjustable

Wiper Cleaning Cycle

Adjustable

Power

DC24-36V

OperatingTemperature

-20~60℃

Power Consumption

110W

Size

See dimension drawing

Expand

Support character superposition through TTL serial port or 485, the size and position are adjustable

Connector

Optional: industrial-grade through-cabin connector, cable length is 1 meter (default), industrial-grade micro-miniature watertight connectors can be customized.

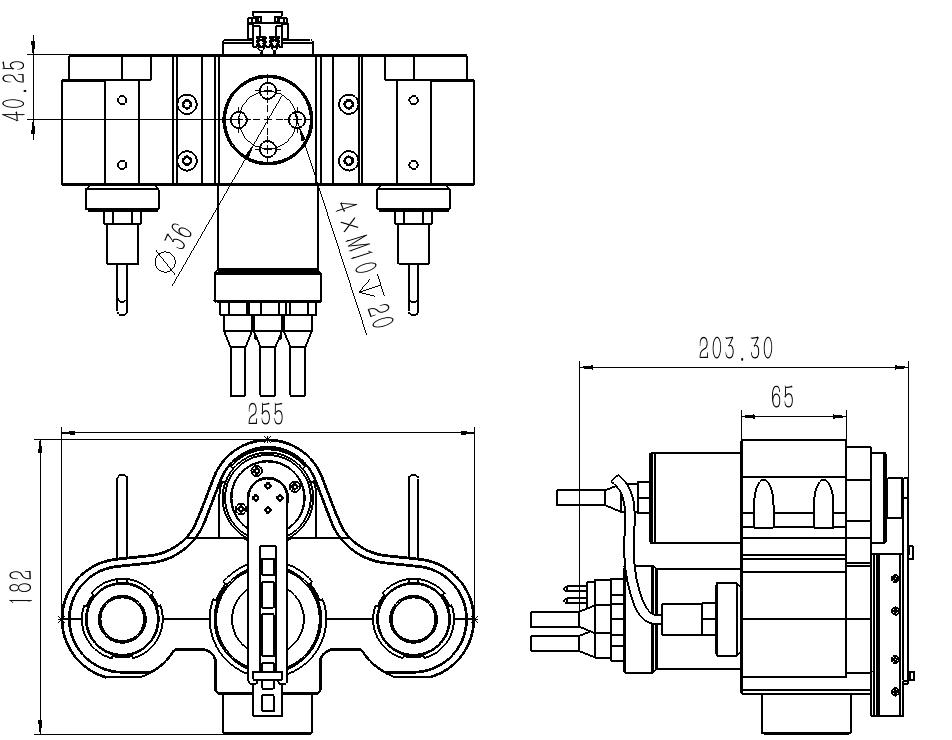

3、Overall Dimension
