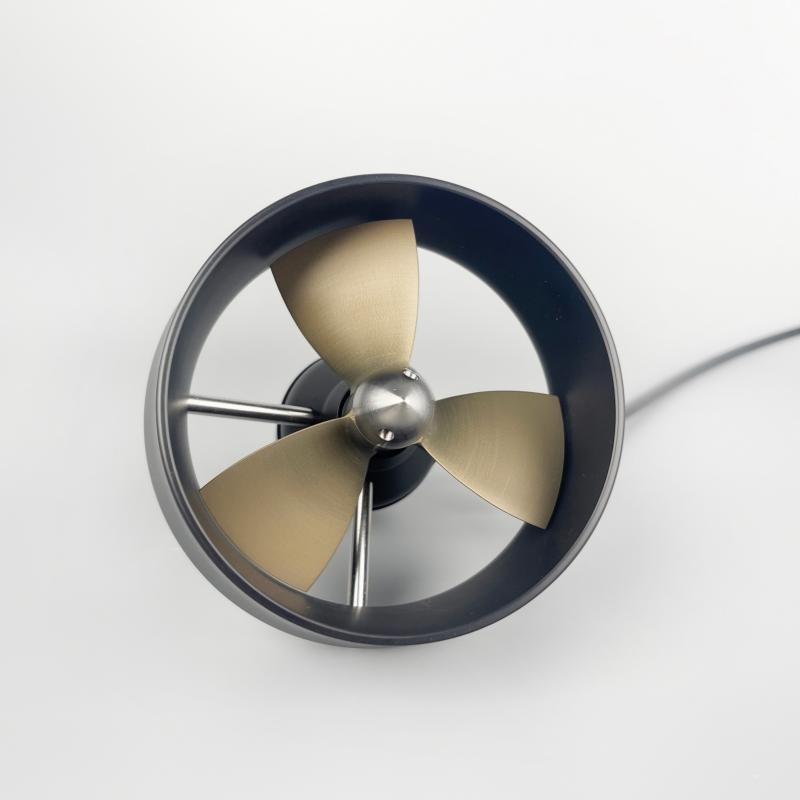

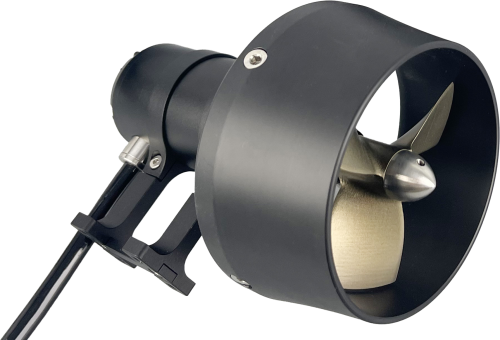

FD-HT100 Underwater Thruster

1、Product Specifications

Index

Parameter

Sealing Method

Maintainable full-sealing

Sealing Structure

Adaptive Rotary Dynamic Seal Structure

Oil Pressure Compensation

with

Thruster shell material

Aluminum alloy

Shroud material

POM

Mounting Base Material

Aluminum Alloy

Main shaft material

316L stainless steel (hardened to 56HRC at the dynamic seal area)

Cable iacket material

TPU

Blade material

Aluminum Alloy

Blade diameter

100mm

Cable specification

external diameter:8.0mm;length:1m ;inner core:3x1.5mm²

Rated thrust

15.6kgf（forward） 9.2kgf（reverse）

Rated power

766W

Rated voltage

48v

Operating voltage

DC24-52v

Rated depth

350m

Weight

in air： 1305g，in water：815g

Driver

external

Temperature

-10~50℃

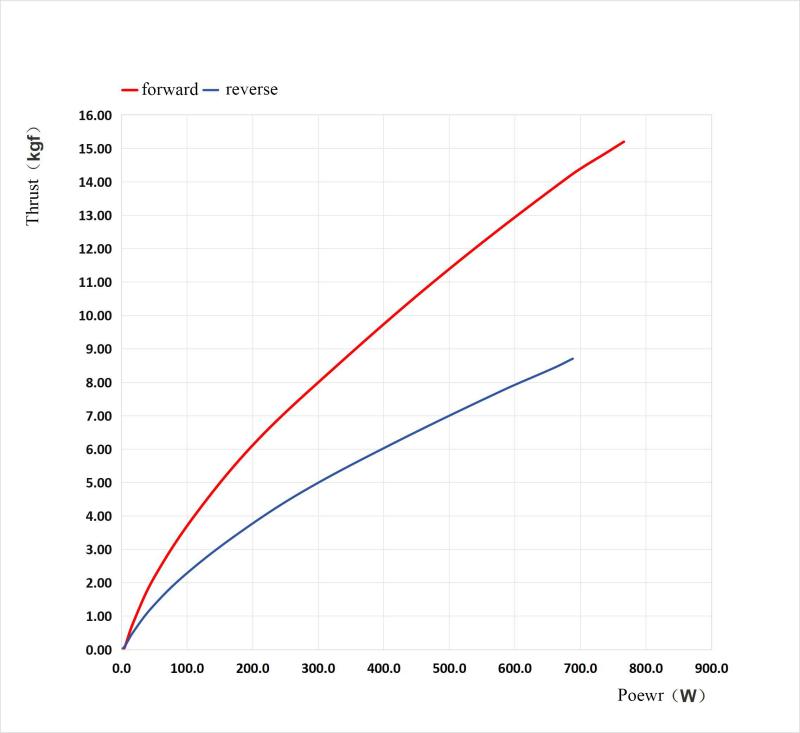

2、Thrust Curve

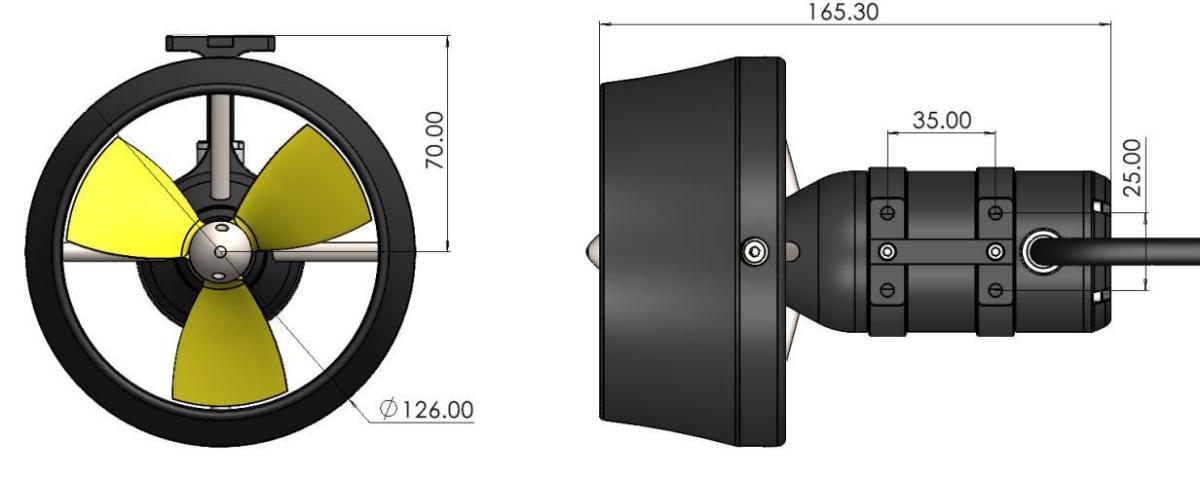

3、Overall Dimension
