FD-AC-01A11 Underwater Small AHD Camera

FD-AC-01A11 Underwater Small AHD Camera

1、Product Introduction

-Maximum pressure 3000 meters
-Ultra-small size and weight
-Use IMX307 2M low light CMOS
-Coaxial HD output, clear and delicate image
-Adaptive digital noise reduction, 2D-DNR, 3D-DNR
-Support digital wide dynamic
-316L Stainless steel casing

2、Product specifications

Product Model

FD-AC-01A11

Rated Depth

3000m

Shell Material

316L stainless steel

Image Sensor

1/2.8" IMX307 LQR

Lens

2.8mm Fixed Focus

FOV in air

98°（D）×85°(H)×67°（V）

Frame rate

25fps

Resolution

1920（H）×1080（V）

Minimum Illumination

0.01Lux@（F1.2，AGC ON）

Signal type

AHD

Video Format

PAL

Power

DC 8-15V

Power Consumption

≤3W

Connector

mcbh3m+mcil3f，cable length 0.6 m

Weight

In air：125g ； in water ：105g ；

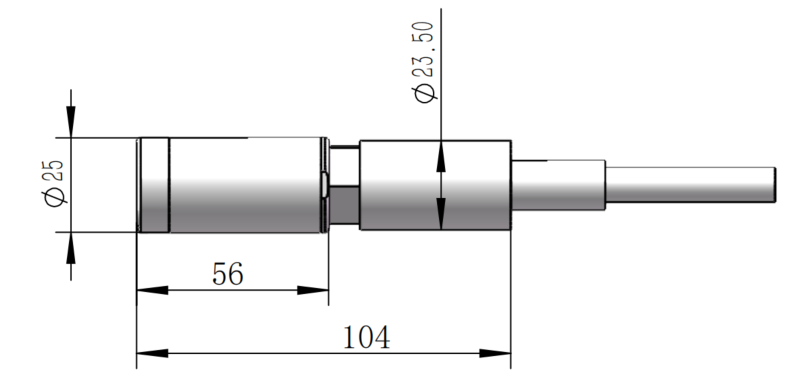

3、Overall Dimension
