FD-DS6K-ACH401 Deep-Water AC Camera

-Underwater analog camera, equipped with subconn connector
-Rated depth 6000m
-Effective pixel 1280(H)*720(V), horizontal definition 1000TVL
-316L casing
-Support voltage 12~24VDC
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Specifications

Product Model

FD-DS6K-ACH401

Rated Depth

6000m

Shell Material

316L stainless steel

Image Sensor

1/3 " CCD

Lens

2.8mm Fixed Focus

FOV in air

110°（In air）

Resolution

1280（H）×720（V），1000TVL

Minimum Illumination

0.08Lux/F1.2

Video Format

PAL/NSTC

Auto Gain

Auto

Backlight Compensation

Auto

Signal-to-noise ratio

≥50dB

Power

DC 12-24V

Power Consumption

≤2W

Size

See dimension drawing

Weight

In air：830g ； in water ：680g ；

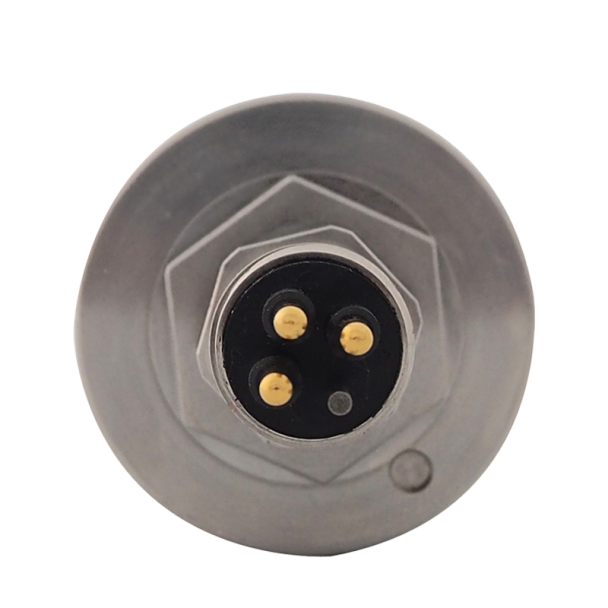

Connector

MCBH3M+MCIL3F，cable length 1 m

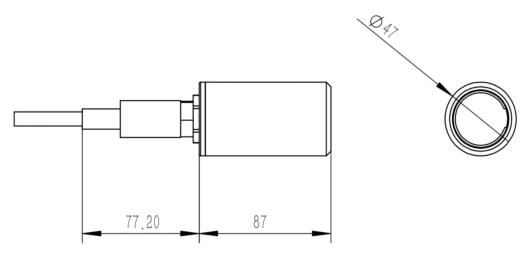

Overall Dimension


download FD-DS6K-ACH401 Deep-Water AC Camera.pdf

Deep-Water AC Camera pixel 1280(H)*720(V) horizontal definition 1000TVL Rated depth 6000m
